Home > products > Refractory Insulation Board > High temperature refractory insulation vermiculite board for kiln insulation

$High temperature refractory insulation vermiculite board for kiln insulation$

High temperature refractory insulation vermiculite board for kiln insulation

Name: High temperature refractory insulation vermiculite board for kiln insulation
Brand: Bluewind
SKU: V-1200
Price: 3.00 USD
Availability: InStock
Rating: 4.7 (191 reviews)

Product Details

Place of Origin: Shenzhen, China

Brand Name: Bluewind

Model Number: V-1200

Payment & Shipping Terms

Minimum Order Quantity: 100 sets

Price: $3.00 - $12.00/sets

Packaging Details: Paper packing and pallet loading;

Delivery Time: 15workdays

Supply Ability: 100000 Piece/Pieces per Month

Get Best Price

Product Details

Product Description

Product Details

High Light:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Shockproof Aluminum Silicate Fiber Board, Energy Saving Aluminum Silicate Fiber Board, Gas Boiler Energy Saving Fire Board


Shape:	Block	Material:	Vermiculite
SiO2 Content (%):	445-48%	Al2O3 Content (%):	13-16%
MgO Content (%):	14-20%	CaO Content (%):	1.5-3%
Refractoriness (Degree):	Common (1580°< Refractoriness< 1770°)	CrO Content (%):	0
SiC Content (%):	0	Processing Service:	Punching, Cutting, Moulding
Product Name:	Vermiculite Block	Raw Material:	Exfoliated Vermiculite
Color:	Sand	Size:	Customized
Application:	Premix Condensing Gas Boiler	BULK DENSITY:	900 Kg/m3
Sample:	Avaliable	Feature:	Thermal Shock Resistance
Cold Crush Strength:	6 Mpa	Refractory Under Load (RUL):	1100 C
Port:	Tianjin Port

Shape:	Block
Material:	Vermiculite
SiO2 Content (%):	445-48%
Al2O3 Content (%):	13-16%
MgO Content (%):	14-20%
CaO Content (%):	1.5-3%
Refractoriness (Degree):	Common (1580°< Refractoriness< 1770°)
CrO Content (%):	0
SiC Content (%):	0
Processing Service:	Punching, Cutting, Moulding
Product Name:	Vermiculite Block
Raw Material:	Exfoliated Vermiculite
Color:	Sand
Size:	Customized
Application:	Premix Condensing Gas Boiler
BULK DENSITY:	900 Kg/m3
Sample:	Avaliable
Feature:	Thermal Shock Resistance
Cold Crush Strength:	6 Mpa
Refractory Under Load (RUL):	1100 C
Port:	Tianjin Port

Product Description

Factory price Aluminum Silicon Vermiculite Refractory Insulation Energy Saving Fire Board for gas boiler

Description of Vermiculite Board

Features

Fire retardant max 1200 C

Thermal conductivity 0.18 W/mk

Density 900 kgs/m3

Shape: Mould pressing produce

Characteristics for Condensing Gas Boiler

No breaking

Corrosion resistant keep the same shape

Long service life Over 10 years working

Low size tolerance 0-1 mm

Low price costs US$3-10 per set

No pollutant No small particle produced

High strength 6 MPa/2 MPa

$High temperature refractory insulation vermiculite board for kiln insulation 0$

Stoves applying

For stoves application, it requires lightweight and good fireproofing requirement, as well as thermal shock resistance. The vermiculite boards owns the all benefits and plays an important role in the stoves applying especially in wood stoves and pellet stoves. And our durable vermiculite boards with longer working life can resistant the bending and crushing which caused by long time uneven heating, bring the stoves longer service life and less trouble for the replacement.

$High temperature refractory insulation vermiculite board for kiln insulation 1$

Heat cell

Heat cell is the heart part of the condensing boiler, it determines the service life of the condensing boiler.

Vermiculite boards with 1200 C can resistant the extremely environment which fast drying and water soaking; has better performance than the traditional ceramic fiber boards.

$High temperature refractory insulation vermiculite board for kiln insulation 2$

Condensing boiler

Condensing boilers ideal service life is about 12-15 years, while the heart part heat cells determines whether it can or can not to reach the ideal life. With high quality vermiculite boards, it can reduce the times of heat cells replacement and bring the user less troubles.

$High temperature refractory insulation vermiculite board for kiln insulation 3$

Aluminum Electrolytic Cells

The V-1100 and V-1200 are recommended for the applying of Aluminum electrolytic cells. Their high strength and low thermal conductivity make them ideally for the applying of the industry. Various combinations of bulk density, insulation properties and compressive strength, commonly V-1100(500), V-1100(1000), and V-1200 are chosen for the excellent performance in strength and thermal insulation performance.

And the another important feature in the Aluminum Electrolytic cells is that the V-1100 and V-1200 series do not corrosion by the molten aluminum and are resistant to cryolite penetration and fluorides. It helps to maintain the cells service life and keep the better running of the aluminum electrolytic processing.

$High temperature refractory insulation vermiculite board for kiln insulation 4$

Vermiculite boards applies 0.3-1 mm expanded silver vermiculite as the raw material, with inorganic mixture bonding and high pressure pressing, after hours drying that made the good strength and fireproof insulation boards.

For serving under severe conditions, vermiculite boards have excellent mechanical strength, good resistance to thermal spalling, and are highly resistant to chemical attack by vilatile alkaies and some slag.

Details Images

$High temperature refractory insulation vermiculite board for kiln insulation 5$

$High temperature refractory insulation vermiculite board for kiln insulation 6$

$High temperature refractory insulation vermiculite board for kiln insulation 7$

$High temperature refractory insulation vermiculite board for kiln insulation 8$

$High temperature refractory insulation vermiculite board for kiln insulation 9$

$High temperature refractory insulation vermiculite board for kiln insulation 10$

$High temperature refractory insulation vermiculite board for kiln insulation 11$

Product Paramenters

Physical parameter
Density (kgs/m3)	700	800	900
Max temp.	1150 ℃	1150 ℃	1150 ℃
Strength	4.5/2.0 MPa	5.5/2.1 MPa	6.2/2.2 MPa
Linear shrinkage	1%	1%	1%
Thermal conduct.
@ 200 ℃	0.14 W/m.k	0.16 W/m.k	0.18 W/m.k
@ 400 ℃	0.16W/m.k	0.18 W/m.k	0.2 W/m.k
@ 600 ℃	0.18 W/m.k	0.2 W/m.k	0.22 W/m.k
Chemical parameter
SiO2	43-46 %	43-46 %	45-48 %
Al2O3	10-13 %	10-13 %	13-16 %
Fe2O3	4-6 %	4-6 %	4-6 %
TiO	1-2 %	1-2 %	1-2 %
MgO	16-23 %	16-23 %	14-20 %
K2O	7-10 %	7-10 %	5-8 %
Na2O	1-2 %	1-2 %	1-2 %
LOI @ 1000 C	4-6 %	4-6 %	3-5 %
Standard size & Thickness
1005*615 mm	10-60 mm thickness	10-60 mm thickness	10-60 mm thickness
1225*615 mm	10-60 mm thickness	10-60 mm thickness	10-60 mm thickness

Data are average results of tests conducted under standard precedures and are subject to variation.

Production Process

$High temperature refractory insulation vermiculite board for kiln insulation 12$

Pressing

High pressure mould pressing to form the shapes required

$High temperature refractory insulation vermiculite board for kiln insulation 13$

Drying

Drying for release the water contained and form the stable applying

$High temperature refractory insulation vermiculite board for kiln insulation 14$

Quality checking

For each unit we have one by one checking to ensure the end using.

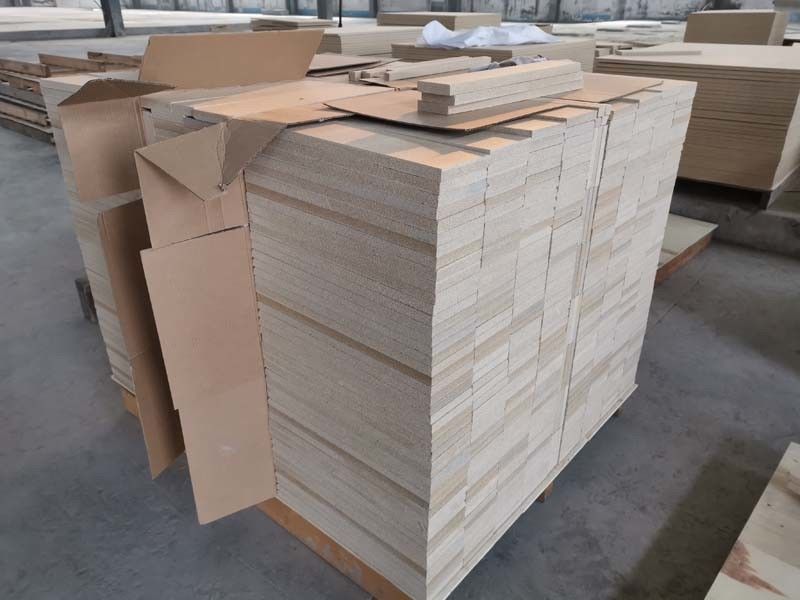

Product Packaging

$High temperature refractory insulation vermiculite board for kiln insulation 15$

$High temperature refractory insulation vermiculite board for kiln insulation 16$

$High temperature refractory insulation vermiculite board for kiln insulation 17$

Company Profile

$High temperature refractory insulation vermiculite board for kiln insulation 18$

Bluewind providing high grade vermiculite boards/blocks to global industrial furnace and projects, range standard size as well as customized mould pressing units. Focus on the insulation vermiculite solution, supplying and construction, offers the qualified vermiculite products for the high requirement of the projects.

Certifications

$High temperature refractory insulation vermiculite board for kiln insulation 19$

$High temperature refractory insulation vermiculite board for kiln insulation 20$

$High temperature refractory insulation vermiculite board for kiln insulation 21$

$High temperature refractory insulation vermiculite board for kiln insulation 22$

FAQ

Q1 : Are you a manufacture or trader?
A: We are a manufacturer based trading company, we not only can provide the high quality products with the
best price, but also can offer the total solution for your project requirement.

Q2: How can you control your quality?
A : For each production processing, Bluewind have complete QC system for the quality controlling and overall quality checking after production, and before packing and shipment, we have another quality checking to ensure every piece of the boards are to be delivered in good quality.

Q3 : Do you provide free samples?
A : We hope every sample valued, especially which requires machining tooling.

Q4 : What is your lead time?
A : It usually needs about 20- 35 days after receiving the PO.

Q5 : Can we visit your company?
A : Yes, for sure, you are welcome to visit our company and our products.

Q6 : What is the warranty of your products?
A : Our products have at least 1 year warranty, if any quality problems not caused by personal or accident,
we will take responsibility of the cost of the shipment and the replacement.

Q7: What's the MOQ of trial order?
A : we recommend the MOQ at least a full pallet so that the costs more efficient.

Q8: Why choose us?
A: We had been in the line for more than 15 years, insist in the quality first and good after-sales service. Bring the customers few troubles and satisfying on the applying.
