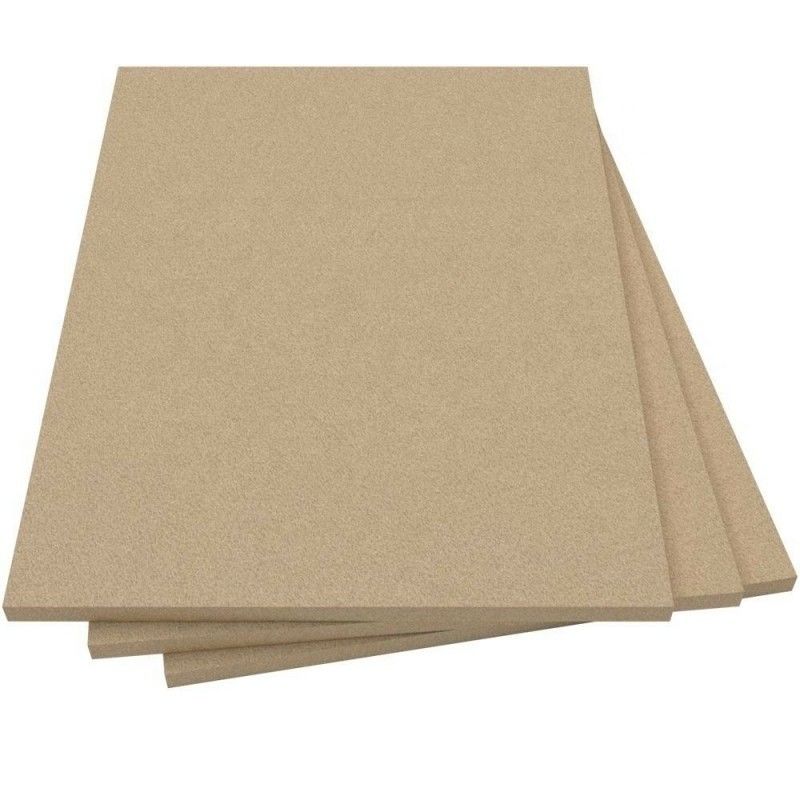

Machining Fireplace Insulation Board 750kgs/M3 Fire Retardant

Product Details

Place of Origin: Shenzhen, China

Brand Name: Bluewind

Model Number: BWV-Baffle

Payment & Shipping Terms

Minimum Order Quantity: 100 pieces

Price: $5.00/pieces 100-499 pieces

Packaging Details: Standard pallet packing

Delivery Time: 15workdays

Supply Ability: 100000 Piece/Pieces per Month

Get Best Price
Product Details
High Light:

Machining Fire Retardant Fireplace Insulation Board

,

Fireplace Insulation Board 750kgs/M3

,

Fire Retardant Ceramic Fibre Board

Warranty:
2 Years
After-sale Service:
Online Technical Support
Project Solution Capability:
Graphic Design
Application:
Wood Stove
Design Style:
Traditional
Type:
FIREPROOF BOARD, Insulation Panel
Material:
Vermiculite
Size:
323*110*20 Mm
Density:
750 Kgs/m3
Function:
Flame Retardant
Usage:
Thermal Resistance
Thermal Conductivity:
0.16 W/mk
Shape:
Customized Designs
MOQ:
1000Pcs
Raw Material:
Vermiculite
Port:
Shenzhen/ Shanghai/ Tianjin
Warranty:
2 Years
After-sale Service:
Online Technical Support
Project Solution Capability:
Graphic Design
Application:
Wood Stove
Design Style:
Traditional
Type:
FIREPROOF BOARD, Insulation Panel
Material:
Vermiculite
Size:
323*110*20 Mm
Density:
750 Kgs/m3
Function:
Flame Retardant
Usage:
Thermal Resistance
Thermal Conductivity:
0.16 W/mk
Shape:
Customized Designs
MOQ:
1000Pcs
Raw Material:
Vermiculite
Port:
Shenzhen/ Shanghai/ Tianjin
Product Description
Stove use thermal insulation fire retardant liner board machining vermiculite board
Description of Vermiculite Board
Machining Fireplace Insulation Board 750kgs/M3 Fire Retardant 0
Features
High temperature resistant up to 1200 C;
High thermal shock resistant, can be used on fire side;
A1 non combustibility classification;
Low thermal conductivity
Available in various densities of 400-1200 kgs/m3;
High chemical resistant;
High mechanical strengths;
Easy for secondary tooling and machining;
Machining Fireplace Insulation Board 750kgs/M3 Fire Retardant 1
Stoves applying
For stoves application, it requires lightweight and good fireproofing requirement, as well as thermal shock resistance. The vermiculite boards owns the all benefits and plays an important role in the stoves applying especially in wood stoves and pellet stoves. And our durable vermiculite boards with longer working life can resistant the bending and crushing which caused by long time uneven heating, bring the stoves longer service life and less trouble for the replacement.
Machining Fireplace Insulation Board 750kgs/M3 Fire Retardant 2

Heat cell

Heat cell is the heart part of the condensing boiler, it determines the service life of the condensing boiler.
Vermiculite boards with 1200 C can resistant the extremely environment which fast drying and water soaking; has better performance than the traditional ceramic fiber boards.
Machining Fireplace Insulation Board 750kgs/M3 Fire Retardant 3

Condensing boiler

Condensing boilers ideal service life is about 12-15 years, while the heart part heat cells determines whether it can or can not to reach the ideal life. With high quality vermiculite boards, it can reduce the times of heat cells replacement and bring the user less troubles.
Machining Fireplace Insulation Board 750kgs/M3 Fire Retardant 4
Aluminum Electrolytic Cells
The V-1100 and V-1200 are recommended for the applying of Aluminum electrolytic cells. Their high strength and low thermal conductivity make them ideally for the applying of the industry. Various combinations of bulk density, insulation properties and compressive strength, commonly V-1100(500), V-1100(1000), and V-1200 are chosen for the excellent performance in strength and thermal insulation performance.
And the another important feature in the Aluminum Electrolytic cells is that the V-1100 and V-1200 series do not corrosion by the molten aluminum and are resistant to cryolite penetration and fluorides. It helps to maintain the cells service life and keep the better running of the aluminum electrolytic processing.
Machining Fireplace Insulation Board 750kgs/M3 Fire Retardant 5

Vermiculite boards applies 0.3-1 mm expanded silver vermiculite as the raw material, with inorganic mixture bonding and high pressure pressing, after hours drying that made the good strength and fireproof insulation boards.
For serving under severe conditions, vermiculite boards have excellent mechanical strength, good resistance to thermal spalling, and are highly resistant to chemical attack by vilatile alkaies and some slag.
Details Images
Machining Fireplace Insulation Board 750kgs/M3 Fire Retardant 6
Machining Fireplace Insulation Board 750kgs/M3 Fire Retardant 7
Machining Fireplace Insulation Board 750kgs/M3 Fire Retardant 8
Machining Fireplace Insulation Board 750kgs/M3 Fire Retardant 9
Machining Fireplace Insulation Board 750kgs/M3 Fire Retardant 10
Machining Fireplace Insulation Board 750kgs/M3 Fire Retardant 11
Machining Fireplace Insulation Board 750kgs/M3 Fire Retardant 12
Machining Fireplace Insulation Board 750kgs/M3 Fire Retardant 13
Machining Fireplace Insulation Board 750kgs/M3 Fire Retardant 14
Machining Fireplace Insulation Board 750kgs/M3 Fire Retardant 15
Product Paramenters
Physical parameter



Density (kgs/m3)
700
800
900
Max temp.
1150 ℃
1150 ℃
1150 ℃
Strength
4.5/2.0 MPa
5.5/2.1 MPa
6.2/2.2 MPa
Linear shrinkage
1%
1%
1%
Thermal conduct.



 @ 200 ℃
0.14 W/m.k
0.16 W/m.k
0.18 W/m.k
 @ 400 ℃
0.16W/m.k
0.18 W/m.k
0.2 W/m.k
 @ 600 ℃
0.18 W/m.k
0.2 W/m.k
0.22 W/m.k
Chemical parameter



SiO2
43-46 %
43-46 %
45-48 %
Al2O3
10-13 %
10-13 %
13-16 %
Fe2O3
4-6 %
4-6 %
4-6 %
TiO
1-2 %
1-2 %
1-2 %
MgO
16-23 %
16-23 %
14-20 %
K2O
7-10 %
7-10 %
5-8 %
Na2O
1-2 %
1-2 %
1-2 %
LOI @ 1000 C
4-6 %
4-6 %
3-5 %
Standard size & Thickness



1005*615 mm
10-60 mm thickness
10-60 mm thickness
10-60 mm thickness
1225*615 mm
10-60 mm thickness
10-60 mm thickness
10-60 mm thickness
Data are average results of tests conducted under standard precedures and are subject to variation.
Product Packaging
Machining Fireplace Insulation Board 750kgs/M3 Fire Retardant 16
Production Process
Machining Fireplace Insulation Board 750kgs/M3 Fire Retardant 17

Pressing

High pressure mould pressing to form the shapes required
Machining Fireplace Insulation Board 750kgs/M3 Fire Retardant 18

Drying

Drying for release the water contained and form the stable applying
Machining Fireplace Insulation Board 750kgs/M3 Fire Retardant 19

Quality checking

For each unit we have one by one checking to ensure the end using.
Company Profile
Machining Fireplace Insulation Board 750kgs/M3 Fire Retardant 20

Bluewind providing high grade vermiculite boards/blocks to global industrial furnace and projects, range standard size as well as customized mould pressing units. Focus on the insulation vermiculite solution, supplying and construction, offers the qualified vermiculite products for the high requirement of the projects.
