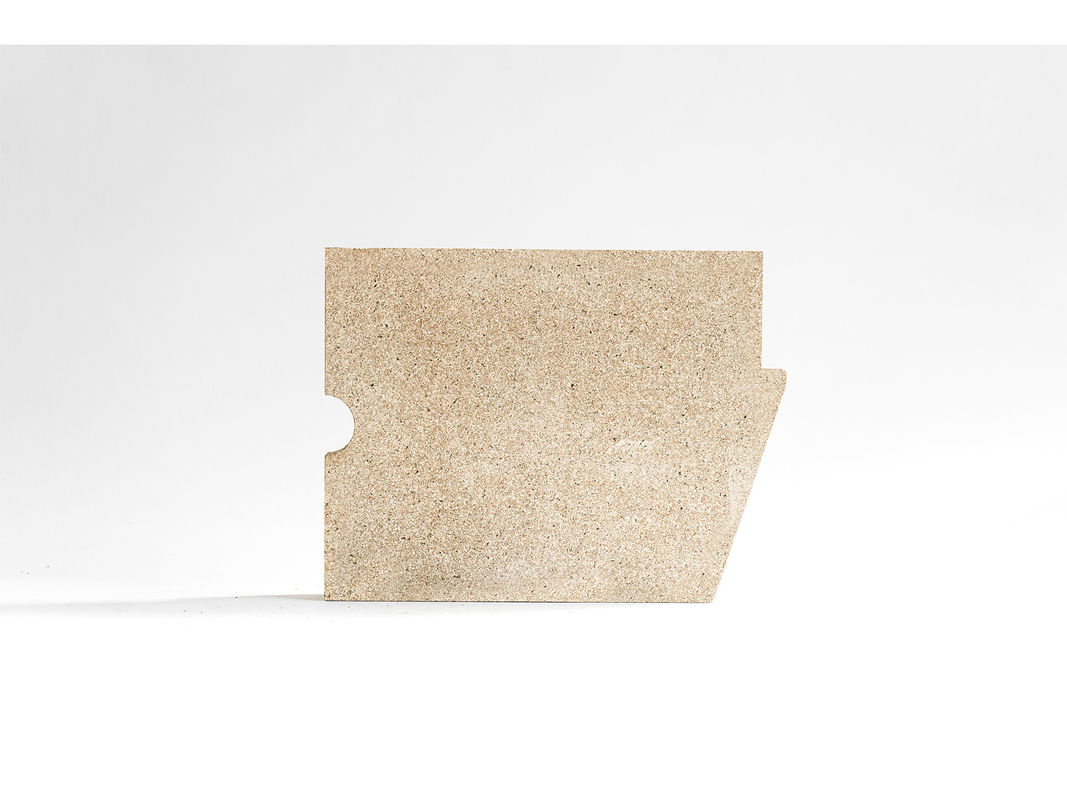

Nontoxic Steel Casting Ladle Fire Board 230x114x30mm For Wood Stove

Name: Nontoxic Steel Casting Ladle Fire Board 230x114x30mm For Wood Stove
Brand: Bluewind
SKU: BWV-Baffle
Price: 5.00 USD
Availability: InStock
Rating: 5 (130 reviews)

Product Details

Place of Origin: Shenzhen, China

Brand Name: Bluewind

Model Number: BWV-Baffle

Payment & Shipping Terms

Minimum Order Quantity: 100 pieces

Price: $5.00/pieces 100-799 pieces

Packaging Details: Paper carton and fumigation free pallet

Delivery Time: 15workdays

Get Best Price

Product Details

Product Description

Product Details

High Light:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Nontoxic Steel Casting Ladle Board, Wood Stove Steel Casting Ladle, 30mm Wood Stove Fire Board


Warranty:	2 Years	After-sale Service:	Online Technical Support, Return And Replacement
Project Solution Capability:	Graphic Design	Application:	Workshop
Design Style:	Modern	Type:	Vermiculite Board, Fireproof Insulation Board
Shape:	Rectangle	Material:	Mineral Fiber, Silver Expanded Vermiculite
Core Material:	Vermiculite	Size:	230 X 114 X 30 Mm
Packing:	6 Pcs Per Carton	Density:	0.7 G/cm³
Advantage:	Fireproof	Keyword:	Stove Fire Brick
Usage:	Wood Burning Stoves	Refractory Temperature:	1100 C°
HS Code:	68069000

Warranty:	2 Years
After-sale Service:	Online Technical Support, Return And Replacement
Project Solution Capability:	Graphic Design
Application:	Workshop
Design Style:	Modern
Type:	Vermiculite Board, Fireproof Insulation Board
Shape:	Rectangle
Material:	Mineral Fiber, Silver Expanded Vermiculite
Core Material:	Vermiculite
Size:	230 X 114 X 30 Mm
Packing:	6 Pcs Per Carton
Density:	0.7 G/cm³
Advantage:	Fireproof
Keyword:	Stove Fire Brick
Usage:	Wood Burning Stoves
Refractory Temperature:	1100 C°
HS Code:	68069000

Product Description

Vermiculite fire brick 230 x 114 x 30 mm wood stove fire board

Description of Vermiculite Board

Features

1,100 C fire prevent

<0.3 W/m.k conductivity

<1.3 g/cm³

Strength > 4 Mpa

Little linear reheat change

Plain, groove parts offered

Small order accepted

Samples offered

Stable quality

Standard size

1200 x 1000 mm 10-80 mm

1000 x 610 mm 10-80 mm

Standard packing

Fumigation free pallet, with stretch film wrapping

BWV baffle boards apply the best resource expanded silver vermiculite which is stable in expansion rate and purity, with inorganic mixture bonding and high pressure pressing, formed the high quality fireproof plates for wood burning stoves, fireplaces, pizza ovens, and other heating and cooking equipment.

The fireproof plates can be cut or produced into bricks, with standard size 1200*1000 mm, and 1000*610 mm, which can be cut into 230*114 mm 40 pcs and 20 pcs. It also can be engraved with various patterns for the ovens interior decoration for elegant appearance, and even for long years applying, keep good performance on appearance and shapes.

Details Images

FAQ

Q1 : Are you a manufacture or trader?
A: We are a manufacturer based trading company, we not only can provide the high quality products with the
best price, but also can offer the total solution for your project requirement.

Q2: How can you control your quality?
A : For each production processing, Bluewind have complete QC system for the quality controlling and overall quality checking after production, and before packing and shipment, we have another quality checking to ensure every piece of the boards are to be delivered in good quality.

Q3 : Do you provide free samples?
A : We hope every sample valued, especially which requires machining tooling.

Q4 : What is your lead time?
A : It usually needs about 20- 35 days after receiving the PO.

Q5 : Can we visit your company?
A : Yes, for sure, you are welcome to visit our company and our products.

Q6 : What is the warranty of your products?
A : Our products have at least 1 year warranty, if any quality problems not caused by personal or accident,
we will take responsibility of the cost of the shipment and the replacement.

Q7: What's the MOQ of trial order?
A : we recommend the MOQ at least a full pallet so that the costs more efficient.

Q8: Why choose us?
A: We had been in the line for more than 15 years, insist in the quality first and good after-sales service. Bring the customers few troubles and satisfying on the applying.

Production Process

Pressing

High pressure mould pressing to form the shapes required

Drying

Drying for release the water contained and form the stable applying

Quality checking

For each unit we have one by one checking to ensure the end using.

Product Packaging

Product Paramenters

Physical parameter
Density (kgs/m3)	700	800	900
Max temp.	1150 ℃	1150 ℃	1150 ℃
Strength	4.5/2.0 MPa	5.5/2.1 MPa	6.2/2.2 MPa
Linear shrinkage	1%	1%	1%
Thermal conduct.
@ 200 ℃	0.14 W/m.k	0.16 W/m.k	0.18 W/m.k
@ 400 ℃	0.16W/m.k	0.18 W/m.k	0.2 W/m.k
@ 600 ℃	0.18 W/m.k	0.2 W/m.k	0.22 W/m.k
Chemical parameter
SiO2	43-46 %	43-46 %	45-48 %
Al2O3	10-13 %	10-13 %	13-16 %
Fe2O3	4-6 %	4-6 %	4-6 %
TiO	1-2 %	1-2 %	1-2 %
MgO	16-23 %	16-23 %	14-20 %
K2O	7-10 %	7-10 %	5-8 %
Na2O	1-2 %	1-2 %	1-2 %
LOI @ 1000 C	4-6 %	4-6 %	3-5 %
Standard size & Thickness
1000*610mm	10-60 mm thickness	10-60 mm thickness	10-60 mm thickness
1200*1000 mm	10-60 mm thickness	10-60 mm thickness	10-60 mm thickness

Data are average results of tests conducted under standard precedures and are subject to variation.

Company Profile

Bluewind is a technology-based manufacturing enterprise of inorganic ecological products, mainly focus on the vermiculite as the main material, for the fireproofing and insulation application of industrial and construction projects. The company covers an producing plant of over 50,000 square meters, and more than 30,000 m2 production workshop and R & D center.

Bluewind provides high grade vermiculite boards/blocks to global industrial furnace and construction buildings projects, range standard size as well as customized mould pressing units. Focus on the insulation vermiculite solution, supplying and construction, offers the qualified long service life vermiculite products for the high requirement of the projects.

Our vermiculite products have applied and get highly reputation in the fields of:
Wood Stoves and Fireplaces;

Industrial kilns insulation shelves;
Full premix condensing gas boilers;
Fire rated door for 240 mins.;
Aluminum electrolytic cells( Aluminum reduction industry)
Construction steel cladding;
Construction fireproofing and insulation projects;
...
Welcome to contact us for your specific requirement on the vermiculite boards, and sincerely we hope bringing our qualified goods for more customers and areas.
