Heatproof Furnace Insulation Panels , Punching Fireproof Board For Lining Fireplace

600 pieces
MOQ
$3.65/pieces 600-2999 pieces
Price
Heatproof Furnace Insulation Panels , Punching Fireproof Board For Lining Fireplace
Features Gallery Product Description Request A Quote
Features
Specifications
Shape: Brick
Material: Vermiculite Brick, Exfoliated Vermiculite
SiO2 Content (%): 48-55 %
Al2O3 Content (%): 12-16%
MgO Content (%): 12-16%
CaO Content (%): 2-4%
Refractoriness (Degree): Common (1580°< Refractoriness< 1770°)
CrO Content (%): 0
SiC Content (%): 0
Processing Service: Punching, Cutting, Moulding
Size: 230*114*65mm
Bulk Density G/cm3: 1.2
Usage: Furnace Liner
Keyword: Acid Proof Silica Refractory Bricks
APPARENT POROSITY: 70-72
Cold Crush Strength: 9.5 Mpa
Bend Strength: 3.5 Mpa
Refractoriness / C: 1200 C
Thermal Conductivity(w/mk): <0.28
Port: Tianjin Port
High Light:

Heatproof Furnace Insulation Panels

,

Fireproof Furnace Insulation Panels

,

Punching Fireproof Board For Lining Fireplace

Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: Bluewind
Model Number: V-1200
Payment & Shipping Terms
Packaging Details: Fumigation free pallet with wrapping film, and hardboard angle protecting.<br>Size 1025*635*1160 mm per pallet, 22 pcs* 15 layers * 65 mm per pallet, and 32 pallets per 20 GP
Delivery Time: 15workdays
Supply Ability: 100000 Piece/Pieces per Month
Product Description
Furnace insulation constructure lining light weight JM26 mullite vermiculite insulating brick

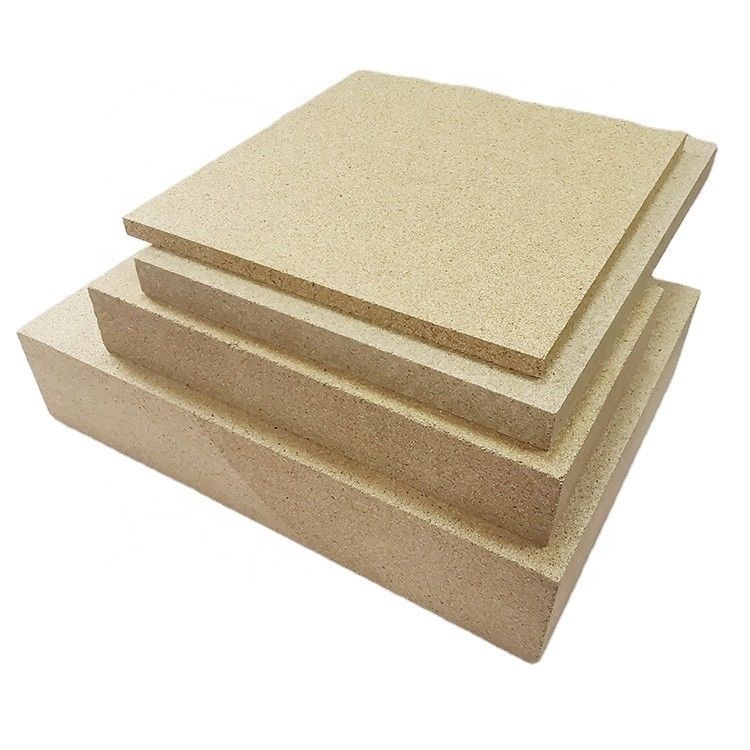

Description of Vermiculite Board
Heatproof Furnace Insulation Panels , Punching Fireproof Board For Lining Fireplace 0
Features
High temperature resistant up to 1200 C;
High thermal shock resistant, can be used on fire side;
A1 non combustibility classification;
Low thermal conductivity
Available in various densities of 400-1200 kgs/m3;
Chemical resistant;
High mechanical strengths;
Easy for secondary tooling and machining, like cutting, sawing, punching etc.
Heatproof Furnace Insulation Panels , Punching Fireproof Board For Lining Fireplace 1

Vermiculite boards applies 0.3-1 mm expanded silver vermiculite as the raw material, with inorganic mixture bonding and high pressure pressing, after hours drying that made the good strength and fireproof insulation boards.
For serving under severe conditions, vermiculite boards have excellent mechanical strength, good resistance to thermal spalling, and are highly resistant to chemical attack by vilatile alkaies and some slag.
Stoves applying
For stoves application, it requires lightweight and good fireproofing requirement, as well as thermal shock resistance. The vermiculite boards owns the all benefits and plays an important role in the stoves applying especially in wood stoves and pellet stoves. And our durable vermiculite boards with longer working life can resistant the bending and crushing which caused by long time uneven heating, bring the stoves longer service life and less trouble for the replacement.
Heatproof Furnace Insulation Panels , Punching Fireproof Board For Lining Fireplace 2

Heat cell

Heat cell is the heart part of the condensing boiler, it determines the service life of the condensing boiler.
Vermiculite boards with 1200 C can resistant the extremely environment which fast drying and water soaking; has better performance than the traditional ceramic fiber boards.
Heatproof Furnace Insulation Panels , Punching Fireproof Board For Lining Fireplace 3

Condensing boiler

Condensing boilers ideal service life is about 12-15 years, while the heart part heat cells determines whether it can or can not to reach the ideal life. With high quality vermiculite boards, it can reduce the times of heat cells replacement and bring the user less troubles.
Heatproof Furnace Insulation Panels , Punching Fireproof Board For Lining Fireplace 4
Aluminum Electrolytic Cells
The V-1100 and V-1200 are recommended for the applying of Aluminum electrolytic cells. Their high strength and low thermal conductivity make them ideally for the applying of the industry. Various combinations of bulk density, insulation properties and compressive strength, commonly V-1100(500), V-1100(1000), and V-1200 are chosen for the excellent performance in strength and thermal insulation performance.
And the another important feature in the Aluminum Electrolytic cells is that the V-1100 and V-1200 series do not corrosion by the molten aluminum and are resistant to cryolite penetration and fluorides. It helps to maintain the cells service life and keep the better running of the aluminum electrolytic processing.
Details Images
Heatproof Furnace Insulation Panels , Punching Fireproof Board For Lining Fireplace 5
Heatproof Furnace Insulation Panels , Punching Fireproof Board For Lining Fireplace 6
Heatproof Furnace Insulation Panels , Punching Fireproof Board For Lining Fireplace 7
Heatproof Furnace Insulation Panels , Punching Fireproof Board For Lining Fireplace 8
Heatproof Furnace Insulation Panels , Punching Fireproof Board For Lining Fireplace 9
Heatproof Furnace Insulation Panels , Punching Fireproof Board For Lining Fireplace 10
Heatproof Furnace Insulation Panels , Punching Fireproof Board For Lining Fireplace 11

Product Paramenters
Physical parameter



Density (kgs/m3)
700
800
900
Max temp.
1150 ℃
1150 ℃
1150 ℃
Strength
4.5/2.0 MPa
5.5/2.1 MPa
6.2/2.2 MPa
Linear shrinkage
1%
1%
1%
Thermal conduct.



 @ 200 ℃
0.14 W/m.k
0.16 W/m.k
0.18 W/m.k
 @ 400 ℃
0.16W/m.k
0.18 W/m.k
0.2 W/m.k
 @ 600 ℃
0.18 W/m.k
0.2 W/m.k
0.22 W/m.k
Chemical parameter



SiO2
43-46 %
43-46 %
45-48 %
Al2O3
10-13 %
10-13 %
13-16 %
Fe2O3
4-6 %
4-6 %
4-6 %
TiO
1-2 %
1-2 %
1-2 %
MgO
16-23 %
16-23 %
14-20 %
K2O
7-10 %
7-10 %
5-8 %
Na2O
1-2 %
1-2 %
1-2 %
LOI @ 1000 C
4-6 %
4-6 %
3-5 %
Standard size & Thickness



1005*615 mm
10-60 mm thickness
10-60 mm thickness
10-60 mm thickness
1225*615 mm
10-60 mm thickness
10-60 mm thickness
10-60 mm thickness
Data are average results of tests conducted under standard precedures and are subject to variation.
Production Process
Heatproof Furnace Insulation Panels , Punching Fireproof Board For Lining Fireplace 12

Pressing

High pressure mould pressing to form the shapes required
Heatproof Furnace Insulation Panels , Punching Fireproof Board For Lining Fireplace 13

Drying

Drying for release the water contained and form the stable applying
Heatproof Furnace Insulation Panels , Punching Fireproof Board For Lining Fireplace 14

Quality checking

For each unit we have one by one checking to ensure the end using.
Product Packaging
Heatproof Furnace Insulation Panels , Punching Fireproof Board For Lining Fireplace 15
Heatproof Furnace Insulation Panels , Punching Fireproof Board For Lining Fireplace 16
Heatproof Furnace Insulation Panels , Punching Fireproof Board For Lining Fireplace 17
FAQ
Q1 : Are you a manufacture or trader?
A: We are a manufacturer based trading company, we not only can provide the high quality products with the
best price, but also can offer the total solution for your project requirement.

Q2: How can you control your quality?
A : For each production processing, Bluewind have complete QC system for the quality controlling and overall quality checking after production, and before packing and shipment, we have another quality checking to ensure every piece of the boards are to be delivered in good quality.

Q3 : Do you provide free samples?
A : We hope every sample valued, especially which requires machining tooling.

Q4 : What is your lead time?
A : It usually needs about 20- 35 days after receiving the PO.

Q5 : Can we visit your company?
A : Yes, for sure, you are welcome to visit our company and our products.

Q6 : What is the warranty of your products?
A : Our products have at least 1 year warranty, if any quality problems not caused by personal or accident,
we will take responsibility of the cost of the shipment and the replacement.

Q7: What's the MOQ of trial order?
A : we recommend the MOQ at least a full pallet so that the costs more efficient.

Q8: Why choose us?
A: We had been in the line for more than 15 years, insist in the quality first and good after-sales service. Bring the customers few troubles and satisfying on the applying.
Company Profile
Heatproof Furnace Insulation Panels , Punching Fireproof Board For Lining Fireplace 18

Bluewind is a technology-based manufacturing enterprise of inorganic ecological products, mainly focus on the vermiculite as the main material, for the fireproofing and insulation application of industrial and construction projects. The company covers an producing plant of over 50,000 square meters, and more than 30,000 m2 production workshop and R & D center.

Bluewind provides high grade vermiculite boards/blocks to global industrial furnace and construction buildings projects, range standard size as well as customized mould pressing units. Focus on the insulation vermiculite solution, supplying and construction, offers the qualified long service life vermiculite products for the high requirement of the projects.

Our vermiculite products have applied and get highly reputation in the fields of:
Wood Stoves and Fireplaces;
Industrial kilns insulation shelves;
Full premix condensing gas boilers;
Fire rated door for 240 mins.;
Aluminum electrolytic cells( Aluminum reduction industry)
Construction steel cladding;
Construction fireproofing and insulation projects;
...
Welcome to contact us for your specific requirement on the vermiculite boards, and sincerely we hope bringing our qualified goods for more customers and areas.
