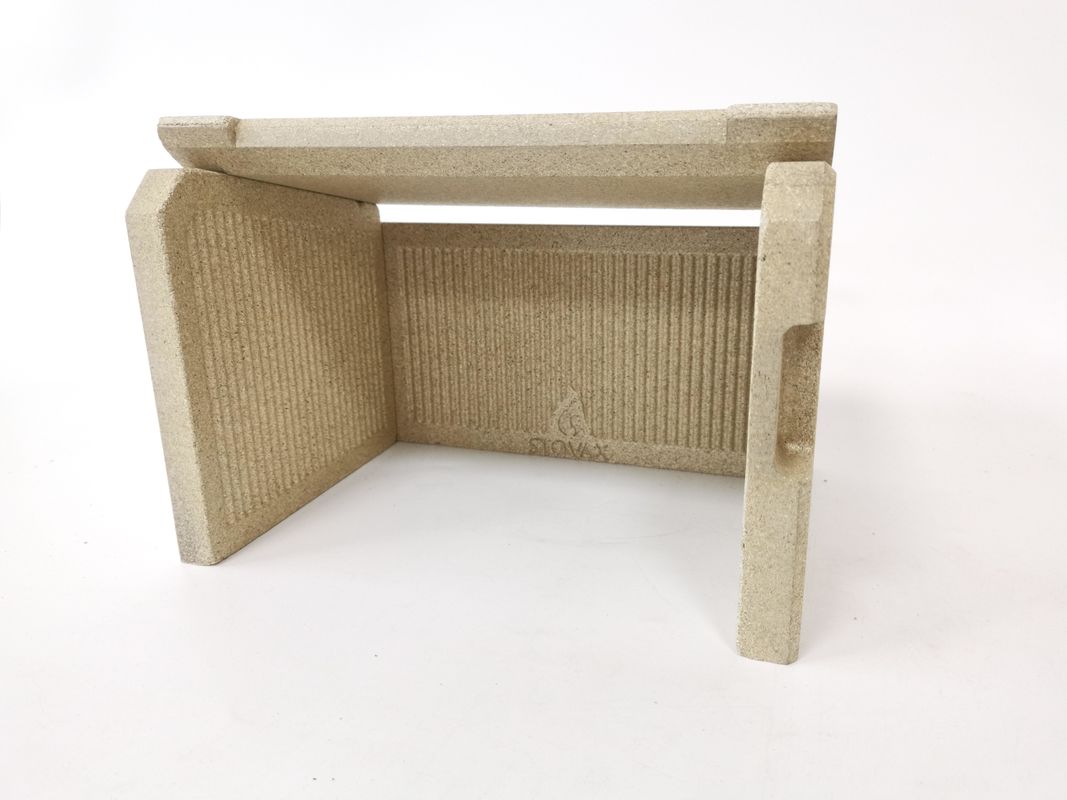

Metallurgy Ladle Vermiculite Refractory Panel 416x101x10mm Practical

2000 pieces
MOQ
$1.80/pieces 2000-9999 pieces
Price
Metallurgy Ladle Vermiculite Refractory Panel 416x101x10mm Practical
Features Gallery Product Description Request A Quote
Features
Specifications
Shape: Plate
Material: Vermiculite
SiO2 Content (%): 32
Al2O3 Content (%): 16
MgO Content (%): 20
CaO Content (%): 1
Refractoriness (Degree): Common (1580°< Refractoriness< 1770°)
CrO Content (%): 0
SiC Content (%): 0
Processing Service: Cutting
Size: 416*101 Mm
Thickness: 10 Mm
Application: Ladle Insulation Layer Cladding
Bulk Density;(kg/m3): 1.0 G/cm³
Raw Material: Vermiculite
APPARENT POROSITY: 58%
Refractory Under Load (RUL): 1100
Usage: Fire Resistance Place
Working Temperature: 1200
Keyword: Insulation
Port: Shenzhen
High Light:

Metallurgy Ladle Vermiculite Refractory Panel

,

Vermiculite Refractory Panel 10mm

,

Practical Vermiculite Board 10mm

Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: Bluewind
Model Number: BWV-TRI
Payment & Shipping Terms
Packaging Details: Standard export pallet packing
Delivery Time: 15workdays
Supply Ability: 300000 Piece/Pieces per Month
Product Description
Magnesia Silica Metallurgy Ladle Insulation Board 416 x 101 x 10 mm
Description of Vermiculite Board
BWV Vermiculite board
BWV vermiculite board
Use Xinjiang Silver vermiculite ore, after high temperature heating, expanded 6-12 times as the material size, with excellent insulation and refractory performance. With unique technology, make it good strength and insulation performance for industrial energy saving and emission reducing applying.
Metallurgy Ladle Vermiculite Refractory Panel 416x101x10mm Practical 0
Features
Refractory: Up to 1200 °C fire/heat resistant
High thermal shock resistant, can be used on fire side;
Non combustible
Thermal/ Heat insulation: Low thermal conductivity <0.3 W /m.K @ 1,000 Celsius degree
Density range: 0.4-1.2 g/cm³

Chemical resistant;
High mechanical strengths;
Easy for secondary tooling and machining
Environmental friendly
Foundry Ladle
Metallurgy Ladle Vermiculite Refractory Panel 416x101x10mm Practical 1

Metallurgy Insulation Layer

Bluewind TRI series aluminum silicate plate, can resist max 1,200 Celsius degree firing, and the thermal conductivity below 0.3 E/m.K. Which in steel melting industry, it has been applied in the liquid ladle insulation layer, for the high temperature resistant and thermal insulation performance.

Thickness: Commonly applying 10/15/18/32 mm plate as the insulation claddings.
Performance: Can keep the outside temperature as designed.
Service Life: Expected to serve for 10 months or longer ( the refractory layer requires refurbished regularly)
Shapes: Rectangle or trapezoid
Installation: Past to the inside wall of ladle with refractory clay; then install the permanent layer, and last refractory layer
Metallurgy Ladle Vermiculite Refractory Panel 416x101x10mm Practical 2
Aluminum Electrolytic

Electrolytic Aluminum Melting industry

In electrolytic aluminum melting industry, Bluewind refractory and insulation vermiculite products mainly works in following two parts: anti-leakage bricks and insulation layer vermiculite bricks.

Anti-leakage bricks: It requires to stand the high temperature and prevent the aluminum melting liquid leakage. And if the insulation capacity of the anti-leakage layer better, it can reduce the heat consumption and energy costs.
Bluewind high density vermiculite brick, max resist 1,200 C heating and firing, with stable working and insulation performance, in the layer of anti-leakage, forms a ceramic like layer under continuous high temperature heating, which can prevent the aluminum melting liquid leakage. While the thermal conductivity is below 0.3 W/m.K, which great lower than most refractory bricks, which make it helping the energy saving and production improving.
Insulation layer vermiculite bricks: In the insulation layer, vermiculite bricks work like a transition layer which prevent the heat spreading fast outside the melting cells. It can resist the high temperature and has a good insulation performance, can take part roles of the clay brick and Calsium Silicate boards, and works in the middle layer of the clay brick and Calsium Silicate bricks.
Metallurgy Ladle Vermiculite Refractory Panel 416x101x10mm Practical 3
Metallurgy Ladle Vermiculite Refractory Panel 416x101x10mm Practical 4
Metallurgy Ladle Vermiculite Refractory Panel 416x101x10mm Practical 5
Metallurgy Ladle Vermiculite Refractory Panel 416x101x10mm Practical 6
Metallurgy Ladle Vermiculite Refractory Panel 416x101x10mm Practical 7
Metallurgy Ladle Vermiculite Refractory Panel 416x101x10mm Practical 8
Metallurgy Ladle Vermiculite Refractory Panel 416x101x10mm Practical 9

Product Paramenters
Physical parameter



Density (kgs/m3)
450
800
1200
Max temp.
1050 ℃
1150 ℃
1200 ℃
Strength
2.4/1.0 MPa
5.5/2.1 MPa
8/3.5 MPa
Linear shrinkage
3%
1%
1%
Thermal conduct.



 @ 200 ℃
0.11 W/m.k
0.16 W/m.k
0.23W/m.k
 @ 400 ℃
0.13W/m.k
0.18 W/m.k
0.26 W/m.k
 @ 600 ℃
0.15 W/m.k
0.2 W/m.k
0.27 W/m.k
Chemical parameter



SiO2
43-48 %
43-46 %
45-48 %
Al2O3
10-13 %
10-13 %
13-16 %
Fe2O3
4-6 %
4-6 %
4-6 %
TiO
1-2 %
1-2 %
1-2 %
MgO
16-23 %
16-23 %
14-20 %
K2O
7-10 %
7-10 %
5-8 %
Na2O
1-2 %
1-2 %
1-2 %
LOI @ 1000 C
4-6 %
4-6 %
3-5 %
Standard size & Thickness



1000*610mm
10-80 mm thickness
10-80 mm thickness
10-80 mm thickness
1200*1000 mm
30-80 mm thickness
10-80 mm thickness
10-80 mm thickness
Product Packaging
Standard packing method, Plywood pallet with stretch film wrapping to prevent the moisture ; paper angels and then belt fasten
Paper box packing for irregular shapes, to avoid the damage on the uneven surface during transportation
Metallurgy Ladle Vermiculite Refractory Panel 416x101x10mm Practical 10
Metallurgy Ladle Vermiculite Refractory Panel 416x101x10mm Practical 11
Metallurgy Ladle Vermiculite Refractory Panel 416x101x10mm Practical 12
Truck transportation for domestic delivery
Standard container loading for oversea shipping
Company Profile
Metallurgy Ladle Vermiculite Refractory Panel 416x101x10mm Practical 13

Shenzhen Bluwind Vermiculite Product Co., Ltd., is a manufacturing company strive in vermiculite refractory and insulation products producing and supplying.

We offer 1,200 Celsius degree fire resistant anti-seepage vermiculite bricks for Aluminum Electrolytic Cells, as well as Lightweight Insulation Vermiculite Bricks in the insulation Layers, Refractory and insulation material for 10+ years designed wall mounted condensing gas boilers and long service life industrial boilers, Tundish and steel ladle use refractory and insulation layer vermiculite panels, Wood stove and fireplaces use fireproof and heat insulation baffle boards, 120+ mins 240+ mins fire rated light weight vermiculite door core, Decorative fireproof wall cladding, ventilation duct fire resist light weight panels etc.

Bluewind strive in produce and supply high quality vermiculite refractory and insulation products, the diagonal change is within 2 mm in 1000 mm length, while 95% of vermiculite products at least 10 mm. For unique requirement, we supply panels with patterns like reed, hexagon, brick, diamond etc shapes, and molded parts as well as machining parts for customers requirements. Satisfy different requirement of users, if you have any request on the vermiculite panels, please feel free to contact us for your high requirement on the refractory and insulation material applying.

Bluewind will be your reliable and loyal partner in the cooperation!
Recommend Products

FAQ
1.You are a manufacture or a trading company ?
We are a manufacturer founded in 2013, located in Guangdong China, with 2 branches. We strive in providing the high quality vermiculite refractory products with the best price, but also can offer the best pre-sale service and after-service.

2.What kind of product can you offer ?
Our company offer vermiculite related products such as Low Density Insulation Brick made of vermiculite, Fireplace Baffle Board, Lightweight Fire Door Core, Refractory Silica Plates, High Density Vermiculite Bricks etc.

3.Can you provide free samples ?
Free samples are available with freight paid at buyer!

4.What is your MOQ?
We don't have particular MOQ, we can accept any order for any different projects.Price depends on quantity.

5.Can we have a visit to your factory ?
Welcome to visit our factory!

6.What's the lead time?
Generally 7-15 days if the goods are in stock.Or it is 15-30 days, it is according to quantity.

7.What's the payment term?
50% advanced payment and balance paid before loading by T/T, and large amount can be paid by L/C.

8.Can you accept neutral packing & OEM ?
We accept the neutral packing and OEM.

9.How do you control quality ?
We have QC on each production steps, when pressing out check the thickness and size, after drying check the strength and dimension etc.

10.Why we choose the products of your company?

Bluewind Vermiculite is the leading company specialized in the vermiculite refractory and insulation products. The quality of our boards can overpass others vendors, especially in the strength and fireproofing standards.
