Fireproof Vermiculite Baffle Board Lightweight Nontoxic Thickness 15mm

Product Details

Place of Origin: Shenzhen, China

Brand Name: Bluewind

Model Number: V-1000

Payment & Shipping Terms

Minimum Order Quantity: 80 pieces

Price: $5.00 - $35.00/pieces

Packaging Details: Max 105 cm height per pallet( 50 pcs for 20 mm, 40 pcs for 25 mm, 33 pcs for 30 mm)
32 pallets (1005*615 mm)/20 GP; 16 pallets( 1005*1225 mm)/20 GP

Delivery Time: 15workdays

Supply Ability: 100000 Piece/Pieces per Month

Get Best Price
Product Details
High Light:

Fireproof Vermiculite Baffle Board

,

Vermiculite Baffle Board Lightweight

,

Nontoxic Fireproof Ceramic Fiber Board

Warranty:
2 Years
After-sale Service:
Online Technical Support
Project Solution Capability:
Graphic Design
Application:
Other, Stoves
Design Style:
Industrial
Type:
Vermiculite Board
Shape:
Rectangle
Material:
Vermiculite
Core Material:
Vermiculite
Size:
Customized Size
Feature:
Fire Retardant, Insulation
Density:
750 Kgs/m3
Raw Material:
Mineral Vermiculite
Thickness:
15 Mm
Advantage:
Longer Service Life
Package:
Pallet Or Paper Carton
Refractory Temperature:
1200℃
HS:
68069000
Port:
Tianjin Port
Warranty:
2 Years
After-sale Service:
Online Technical Support
Project Solution Capability:
Graphic Design
Application:
Other, Stoves
Design Style:
Industrial
Type:
Vermiculite Board
Shape:
Rectangle
Material:
Vermiculite
Core Material:
Vermiculite
Size:
Customized Size
Feature:
Fire Retardant, Insulation
Density:
750 Kgs/m3
Raw Material:
Mineral Vermiculite
Thickness:
15 Mm
Advantage:
Longer Service Life
Package:
Pallet Or Paper Carton
Refractory Temperature:
1200℃
HS:
68069000
Port:
Tianjin Port
Product Description
Vermiculite fireproof baffle board customized insulation baffle board
Description of Vermiculite Board

Fireproof Vermiculite Baffle Board Lightweight Nontoxic Thickness 15mm 0
Features
High temperature resistant up to 1200 C;
High thermal shock resistant, can be used on fire side;
A1 non combustibility classification;
Low thermal conductivity
Available in various densities of 400-1200 kgs/m3;
High chemical resistant;
High mechanical strengths;
Easy for secondary tooling and machining;

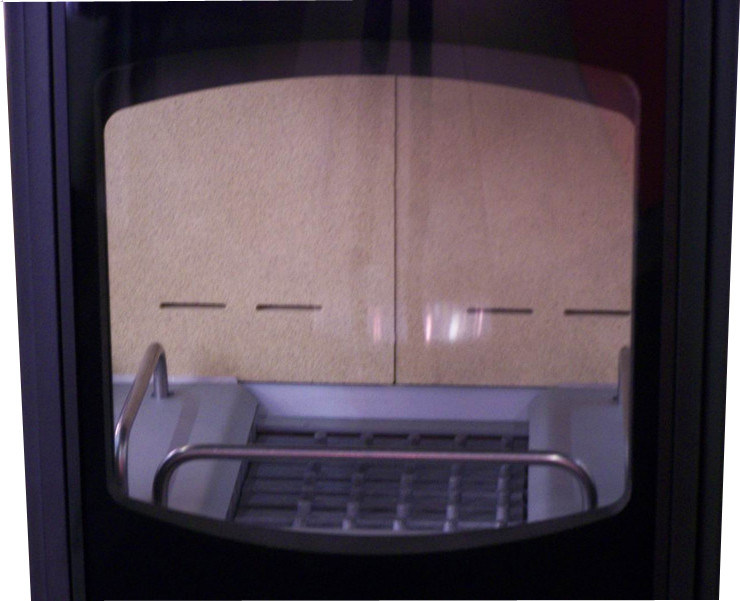

Stoves applying
For stoves application, it requires lightweight and good fireproofing requirement, as well as thermal shock resistance. The vermiculite boards owns the all benefits and plays an important role in the stoves applying especially in wood stoves and pellet stoves. And our durable vermiculite boards with longer working life can resistant the bending and crushing which caused by long time uneven heating, bring the stoves longer service life and less trouble for the replacement.
Fireproof Vermiculite Baffle Board Lightweight Nontoxic Thickness 15mm 1

Heat cell

Heat cell is the heart part of the condensing boiler, it determines the service life of the condensing boiler.
Vermiculite boards with 1200 C can resistant the extremely environment which fast drying and water soaking; has better performance than the traditional ceramic fiber boards.
Fireproof Vermiculite Baffle Board Lightweight Nontoxic Thickness 15mm 2

Condensing boiler

Condensing boilers ideal service life is about 12-15 years, while the heart part heat cells determines whether it can or can not to reach the ideal life. With high quality vermiculite boards, it can reduce the times of heat cells replacement and bring the user less troubles.
Fireproof Vermiculite Baffle Board Lightweight Nontoxic Thickness 15mm 3
Aluminum Electrolytic Cells
The V-1100 and V-1200 are recommended for the applying of Aluminum electrolytic cells. Their high strength and low thermal conductivity make them ideally for the applying of the industry. Various combinations of bulk density, insulation properties and compressive strength, commonly V-1100(500), V-1100(1000), and V-1200 are chosen for the excellent performance in strength and thermal insulation performance.
And the another important feature in the Aluminum Electrolytic cells is that the V-1100 and V-1200 series do not corrosion by the molten aluminum and are resistant to cryolite penetration and fluorides. It helps to maintain the cells service life and keep the better running of the aluminum electrolytic processing.
Fireproof Vermiculite Baffle Board Lightweight Nontoxic Thickness 15mm 4

Vermiculite boards applies 0.3-1 mm expanded silver vermiculite as the raw material, with inorganic mixture bonding and high pressure pressing, after hours drying that made the good strength and fireproof insulation boards.
For serving under severe conditions, vermiculite boards have excellent mechanical strength, good resistance to thermal spalling, and are highly resistant to chemical attack by vilatile alkaies and some slag.
Details Image
Fireproof Vermiculite Baffle Board Lightweight Nontoxic Thickness 15mm 5

Product Paramenters
Physical parameter



Density (kgs/m3)
700
800
900
Max temp.
1150 ℃
1150 ℃
1150 ℃
Strength
4.5/2.0 MPa
5.5/2.1 MPa
6.2/2.2 MPa
Linear shrinkage
1%
1%
1%
Thermal conduct.



 @ 200 ℃
0.14 W/m.k
0.16 W/m.k
0.18 W/m.k
 @ 400 ℃
0.16W/m.k
0.18 W/m.k
0.2 W/m.k
 @ 600 ℃
0.18 W/m.k
0.2 W/m.k
0.22 W/m.k
Chemical parameter



SiO2
43-46 %
43-46 %
45-48 %
Al2O3
10-13 %
10-13 %
13-16 %
Fe2O3
4-6 %
4-6 %
4-6 %
TiO
1-2 %
1-2 %
1-2 %
MgO
16-23 %
16-23 %
14-20 %
K2O
7-10 %
7-10 %
5-8 %
Na2O
1-2 %
1-2 %
1-2 %
LOI @ 1000 C
4-6 %
4-6 %
3-5 %
Standard size & Thickness



1005*615 mm
10-60 mm thickness
10-60 mm thickness
10-60 mm thickness
1225*615 mm
10-60 mm thickness
10-60 mm thickness
10-60 mm thickness
Data are average results of tests conducted under standard precedures and are subject to variation.
Production Process
Fireproof Vermiculite Baffle Board Lightweight Nontoxic Thickness 15mm 6

Pressing

High pressure mould pressing to form the shapes required
Fireproof Vermiculite Baffle Board Lightweight Nontoxic Thickness 15mm 7

Drying

Drying for release the water contained and form the stable applying
Fireproof Vermiculite Baffle Board Lightweight Nontoxic Thickness 15mm 8

Quality checking

For each unit we have one by one checking to ensure the end using.
