U Groove Fireplace Insulation Board Rectangle Shape For Industrial

500 pieces
MOQ
$6.00 - $30.00/pieces
Price
U Groove Fireplace Insulation Board Rectangle Shape For Industrial
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 2 Years
After-sale Service: Online Technical Support
Project Solution Capability: Graphic Design
Application: Other, Stoves
Design Style: Industrial
Type: Vermiculite Board
Shape: Rectangle
Material: Vermiculite
Core Material: Vermiculite
Size: Customized Size
Feature: Fire Retardant, Insulation
Density: 800 Kgs/m3
Raw Material: Mineral Vermiculite
Thickness: 30 Mm
Advantage: Longer Service Life
Package: Pallet Or Paper Carton
Refractory Temperature: 1200℃
HS: 68069000
Port: Tianjin Port
High Light:

U Groove Fireplace Insulation Board

,

Fireplace Insulation Board Rectangle

,

Industrial Ceramic Fiber Insulation Board

Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: Bluewind
Model Number: V-1100
Payment & Shipping Terms
Packaging Details: 32 pallets (1005*615 mm)/20 GP; 16 pallets( 1005*1225 mm)/20 GP
Delivery Time: 15workdays
Supply Ability: 100000 Piece/Pieces per Month
Product Description
U groove vermiculite board fire insulation board for wood stove and fireplace liner decoration and fireproof
Description of Vermiculite Board

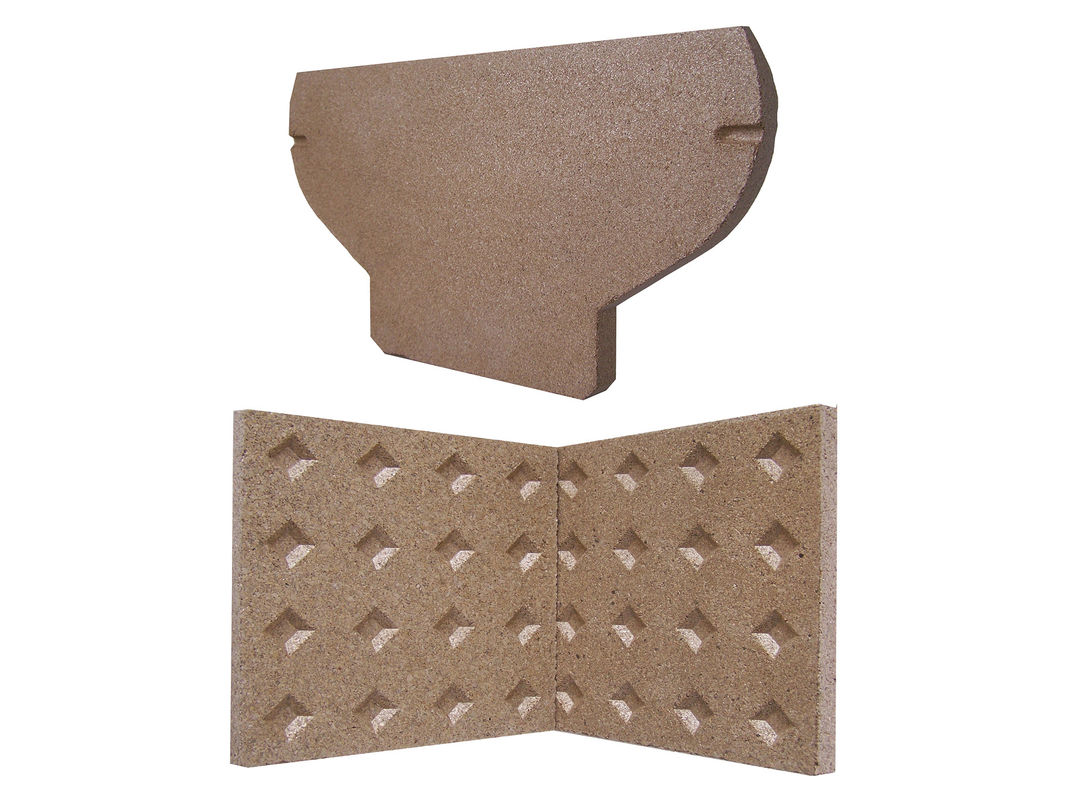

U Groove Fireplace Insulation Board Rectangle Shape For Industrial 0
Features
High temperature resistant up to 1200 C;
High thermal shock resistant, can be used on fire side;
A1 non combustibility classification;
Low thermal conductivity
Available in various densities of 400-1200 kgs/m3;
High chemical resistant;
High mechanical strengths;
Easy for secondary tooling and machining;
Stoves applying
For stoves application, it requires lightweight and good fireproofing requirement, as well as thermal shock resistance. The vermiculite boards owns the all benefits and plays an important role in the stoves applying especially in wood stoves and pellet stoves. And our durable vermiculite boards with longer working life can resistant the bending and crushing which caused by long time uneven heating, bring the stoves longer service life and less trouble for the replacement.
U Groove Fireplace Insulation Board Rectangle Shape For Industrial 1

Heat cell

Heat cell is the heart part of the condensing boiler, it determines the service life of the condensing boiler.
Vermiculite boards with 1200 C can resistant the extremely environment which fast drying and water soaking; has better performance than the traditional ceramic fiber boards.
U Groove Fireplace Insulation Board Rectangle Shape For Industrial 2

Condensing boiler

Condensing boilers ideal service life is about 12-15 years, while the heart part heat cells determines whether it can or can not to reach the ideal life. With high quality vermiculite boards, it can reduce the times of heat cells replacement and bring the user less troubles.
U Groove Fireplace Insulation Board Rectangle Shape For Industrial 3
Aluminum Electrolytic Cells
The V-1100 and V-1200 are recommended for the applying of Aluminum electrolytic cells. Their high strength and low thermal conductivity make them ideally for the applying of the industry. Various combinations of bulk density, insulation properties and compressive strength, commonly V-1100(500), V-1100(1000), and V-1200 are chosen for the excellent performance in strength and thermal insulation performance.
And the another important feature in the Aluminum Electrolytic cells is that the V-1100 and V-1200 series do not corrosion by the molten aluminum and are resistant to cryolite penetration and fluorides. It helps to maintain the cells service life and keep the better running of the aluminum electrolytic processing.
U Groove Fireplace Insulation Board Rectangle Shape For Industrial 4

Vermiculite boards applies 0.3-1 mm expanded silver vermiculite as the raw material, with inorganic mixture bonding and high pressure pressing, after hours drying that made the good strength and fireproof insulation boards.
For serving under severe conditions, vermiculite boards have excellent mechanical strength, good resistance to thermal spalling, and are highly resistant to chemical attack by vilatile alkaies and some slag.
Details Images
U Groove Fireplace Insulation Board Rectangle Shape For Industrial 5

Product Paramenters
Physical parameter



Density (kgs/m3)
700
800
900
Max temp.
1150 ℃
1150 ℃
1150 ℃
Strength
4.5/2.0 MPa
5.5/2.1 MPa
6.2/2.2 MPa
Linear shrinkage
1%
1%
1%
Thermal conduct.



 @ 200 ℃
0.14 W/m.k
0.16 W/m.k
0.18 W/m.k
 @ 400 ℃
0.16W/m.k
0.18 W/m.k
0.2 W/m.k
 @ 600 ℃
0.18 W/m.k
0.2 W/m.k
0.22 W/m.k
Chemical parameter



SiO2
43-46 %
43-46 %
45-48 %
Al2O3
10-13 %
10-13 %
13-16 %
Fe2O3
4-6 %
4-6 %
4-6 %
TiO
1-2 %
1-2 %
1-2 %
MgO
16-23 %
16-23 %
14-20 %
K2O
7-10 %
7-10 %
5-8 %
Na2O
1-2 %
1-2 %
1-2 %
LOI @ 1000 C
4-6 %
4-6 %
3-5 %
Standard size & Thickness



1005*615 mm
10-60 mm thickness
10-60 mm thickness
10-60 mm thickness
1225*615 mm
10-60 mm thickness
10-60 mm thickness
10-60 mm thickness
Data are average results of tests conducted under standard precedures and are subject to variation.
Production Process
U Groove Fireplace Insulation Board Rectangle Shape For Industrial 6

Pressing

High pressure mould pressing to form the shapes required
U Groove Fireplace Insulation Board Rectangle Shape For Industrial 7

Drying

Drying for release the water contained and form the stable applying
U Groove Fireplace Insulation Board Rectangle Shape For Industrial 8

Quality checking

For each unit we have one by one checking to ensure the end using.
Product Packaging
U Groove Fireplace Insulation Board Rectangle Shape For Industrial 9
U Groove Fireplace Insulation Board Rectangle Shape For Industrial 10
U Groove Fireplace Insulation Board Rectangle Shape For Industrial 11
Company Profile
U Groove Fireplace Insulation Board Rectangle Shape For Industrial 12

Bluewind providing high grade vermiculite boards/blocks to global industrial furnace and projects, range standard size as well as customized mould pressing units. Focus on the insulation vermiculite solution, supplying and construction, offers the qualified vermiculite products for the high requirement of the projects.
Certifications
U Groove Fireplace Insulation Board Rectangle Shape For Industrial 13
U Groove Fireplace Insulation Board Rectangle Shape For Industrial 14
U Groove Fireplace Insulation Board Rectangle Shape For Industrial 15
U Groove Fireplace Insulation Board Rectangle Shape For Industrial 16
FAQ
Q1 : Are you a manufacture or trader?
A: We are a manufacturer based trading company, we not only can provide the high quality products with the
best price, but also can offer the total solution for your project requirement.

Q2: How can you control your quality?
A : For each production processing, Bluewind have complete QC system for the quality controlling and overall quality checking after production, and before packing and shipment, we have another quality checking to ensure every piece of the boards are to be delivered in good quality.

Q3 : Do you provide free samples?
A : We hope every sample valued, especially which requires machining tooling.

Q4 : What is your lead time?
A : It usually needs about 20- 35 days after receiving the PO.

Q5 : Can we visit your company?
A : Yes, for sure, you are welcome to visit our company and our products.

Q6 : What is the warranty of your products?
A : Our products have at least 1 year warranty, if any quality problems not caused by personal or accident,
we will take responsibility of the cost of the shipment and the replacement.

Q7: What's the MOQ of trial order?
A : we recommend the MOQ at least a full pallet so that the costs more efficient.

Q8: Why choose us?
A: We had been in the line for more than 15 years, insist in the quality first and good after-sales service. Bring the customers few troubles and satisfying on the applying.

09. Contact method?
A: We can discuss on Alibaba, and also by email us at sales01@bluewindvp.com; or wechat:+86 18218177568
All above method can reach us for our further details discussing.
