Shockproof 6Mpa Furnace Insulation Board , Lightweight Fire Rated Insulation Board

1000 sets
MOQ
$6.00 - $20.00/sets
Price
Shockproof 6Mpa Furnace Insulation Board , Lightweight Fire Rated Insulation Board
Features Gallery Product Description Request A Quote
Features
Specifications
Shape: Block
Material: Vermiculite
SiO2 Content (%): 445-48%
Al2O3 Content (%): 13-16%
MgO Content (%): 14-20%
CaO Content (%): 1.5-3%
Refractoriness (Degree): Common (1580°< Refractoriness< 1770°)
CrO Content (%): 0
SiC Content (%): 0
Processing Service: Punching, Cutting, Moulding
Product Name: Vermiculite Block
Raw Material: Exfoliated Vermiculite
Color: Sand
Size: Customized Size
Application: Premix Condensing Gas Boiler
BULK DENSITY: 900 Kg/m3
Sample: Avaliable
Feature: Thermal Shock Resistance
Cold Crush Strength: 6 Mpa
Refractory Under Load (RUL): 1200 C
Port: Tianjin Port
High Light:

Shockproof Furnace Insulation Board

,

6Mpa Furnace Insulation Board

,

Lightweight Fire Rated Insulation Board

Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: Bluewind
Model Number: V-1200
Payment & Shipping Terms
Packaging Details: As customized
Delivery Time: 15workdays
Supply Ability: 100000 Piece/Pieces per Month
Product Description

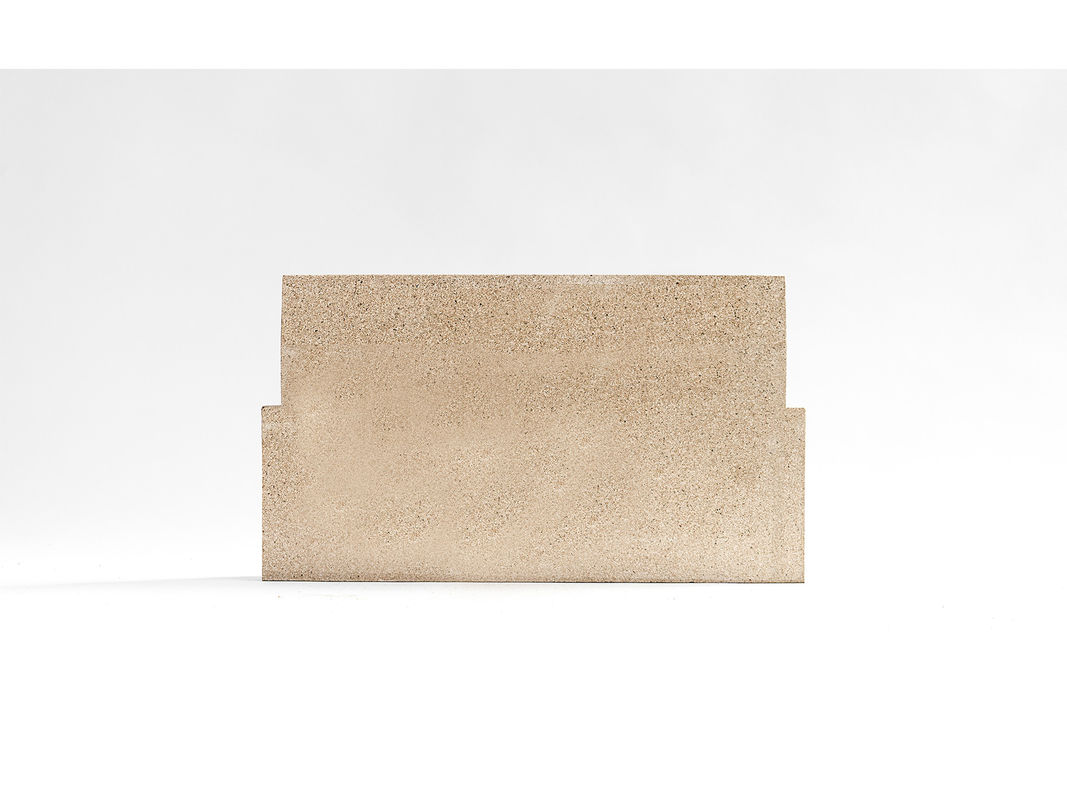

Fire rated vermiculite insulation board for condensing gas boiler
Description of Vermiculite Board
Shockproof 6Mpa Furnace Insulation Board , Lightweight Fire Rated Insulation Board 0

Heat cell

Heat cell is the heart part of the condensing boiler, it determines the service life of the condensing boiler.
Vermiculite boards with 1200 C can resistant the extremely environment which fast drying and water soaking; has better performance than the traditional ceramic fiber boards.
Shockproof 6Mpa Furnace Insulation Board , Lightweight Fire Rated Insulation Board 1

Condensing boiler

Condensing boilers ideal service life is about 12-15 years, while the heart part heat cells determines whether it can or can not to reach the ideal life. With high quality vermiculite boards, it can reduce the times of heat cells replacement and bring the user less troubles.
Details Images
Shockproof 6Mpa Furnace Insulation Board , Lightweight Fire Rated Insulation Board 2
Shockproof 6Mpa Furnace Insulation Board , Lightweight Fire Rated Insulation Board 3
Shockproof 6Mpa Furnace Insulation Board , Lightweight Fire Rated Insulation Board 4
Shockproof 6Mpa Furnace Insulation Board , Lightweight Fire Rated Insulation Board 5
Shockproof 6Mpa Furnace Insulation Board , Lightweight Fire Rated Insulation Board 6
Shockproof 6Mpa Furnace Insulation Board , Lightweight Fire Rated Insulation Board 7
Product Paramenters
Physical parameter



Density (kgs/m3)
700
800
900
Max temp.
1150 ℃
1150 ℃
1150 ℃
Strength
4.5/2.0 MPa
5.5/2.1 MPa
6.2/2.2 MPa
Linear shrinkage
1%
1%
1%
Thermal conduct.



 @ 200 ℃
0.14 W/m.k
0.16 W/m.k
0.18 W/m.k
 @ 400 ℃
0.16W/m.k
0.18 W/m.k
0.2 W/m.k
 @ 600 ℃
0.18 W/m.k
0.2 W/m.k
0.22 W/m.k
Chemical parameter



SiO2
43-46 %
43-46 %
45-48 %
Al2O3
10-13 %
10-13 %
13-16 %
Fe2O3
4-6 %
4-6 %
4-6 %
TiO
1-2 %
1-2 %
1-2 %
MgO
16-23 %
16-23 %
14-20 %
K2O
7-10 %
7-10 %
5-8 %
Na2O
1-2 %
1-2 %
1-2 %
LOI @ 1000 C
4-6 %
4-6 %
3-5 %
Standard size & Thickness



1005*615 mm
10-60 mm thickness
10-60 mm thickness
10-60 mm thickness
1225*615 mm
10-60 mm thickness
10-60 mm thickness
10-60 mm thickness
Data are average results of tests conducted under standard precedures and are subject to variation.
Production Process
Shockproof 6Mpa Furnace Insulation Board , Lightweight Fire Rated Insulation Board 8

Pressing

High pressure mould pressing to form the shapes required
Shockproof 6Mpa Furnace Insulation Board , Lightweight Fire Rated Insulation Board 9

Drying

Drying for release the water contained and form the stable applying
Shockproof 6Mpa Furnace Insulation Board , Lightweight Fire Rated Insulation Board 10

Quality checking

For each unit we have one by one checking to ensure the end using.
Product Packaging
Shockproof 6Mpa Furnace Insulation Board , Lightweight Fire Rated Insulation Board 11
Shockproof 6Mpa Furnace Insulation Board , Lightweight Fire Rated Insulation Board 12
Shockproof 6Mpa Furnace Insulation Board , Lightweight Fire Rated Insulation Board 13
Company Profile
Shockproof 6Mpa Furnace Insulation Board , Lightweight Fire Rated Insulation Board 14

Bluewind providing high grade vermiculite boards/blocks to global industrial furnace and projects, range standard size as well as customized mould pressing units. Focus on the insulation vermiculite solution, supplying and construction, offers the qualified vermiculite products for the high requirement of the projects.
Certifications
Shockproof 6Mpa Furnace Insulation Board , Lightweight Fire Rated Insulation Board 15
Shockproof 6Mpa Furnace Insulation Board , Lightweight Fire Rated Insulation Board 16
Shockproof 6Mpa Furnace Insulation Board , Lightweight Fire Rated Insulation Board 17
Shockproof 6Mpa Furnace Insulation Board , Lightweight Fire Rated Insulation Board 18
