OEM Gas Boiler Fire Brick Blocks For Stove Vermiculite Material

1000 sets
MOQ
$8.00/sets 1000-9999 sets
Price
OEM Gas Boiler Fire Brick Blocks For Stove Vermiculite Material
Features Gallery Product Description Request A Quote
Features
Specifications
Shape: Block
Material: Vermiculite
SiO2 Content (%): 48%
Al2O3 Content (%): 13%
MgO Content (%): 20%
CaO Content (%): 2%
Refractoriness (Degree): Common (1580°< Refractoriness< 1770°)
Processing Service: Moulding
Color: Silver
Size: D 20 * 2 Cm
Product Name: Vermiculite Board
Density: 900 Kgs/m3
Packing: Paper Carton
Usage: Wall Hung Condensing Boiler
HS CODE: 68069000
Service: OEM
Sample: Provided
Feature: Long Life
Port: Xiamen/Shenzhen
High Light:

OEM Fire Brick Blocks

,

Gas Boiler Fire Brick Blocks

,

Vermiculite Fire Blocks For Stove

Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: Bluewind
Model Number: BWV-VIP100
Payment & Shipping Terms
Packaging Details: Paper carton + Fumigation free pallet
Delivery Time: 15workdays
Supply Ability: 1500000 Set/Sets per Month
Product Description
Refractory and insulation part customized pressing block for condensing gas boiler heating room
Details Images

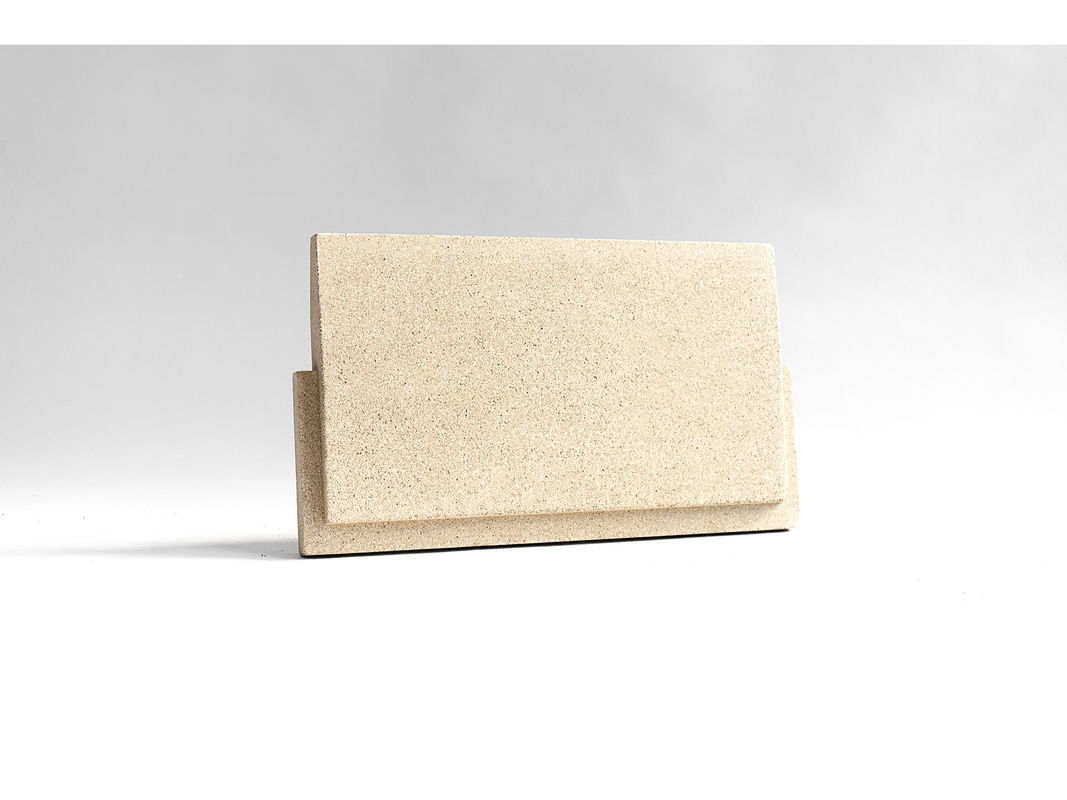

OEM Gas Boiler Fire Brick Blocks For Stove Vermiculite Material 0
OEM Gas Boiler Fire Brick Blocks For Stove Vermiculite Material 1
OEM Gas Boiler Fire Brick Blocks For Stove Vermiculite Material 2
OEM Gas Boiler Fire Brick Blocks For Stove Vermiculite Material 3
OEM Gas Boiler Fire Brick Blocks For Stove Vermiculite Material 4
OEM Gas Boiler Fire Brick Blocks For Stove Vermiculite Material 5
Product Paramenters
Physical parameter



Density (kgs/m3)
700
800
900
Max temp.
1150 ℃
1150 ℃
1150 ℃
Strength
4.5/2.0 MPa
5.5/2.1 MPa
6.2/2.2 MPa
Linear shrinkage
1%
1%
1%
Thermal conduct.



 @ 200 ℃
0.14 W/m.k
0.16 W/m.k
0.18 W/m.k
 @ 400 ℃
0.16W/m.k
0.18 W/m.k
0.2 W/m.k
 @ 600 ℃
0.18 W/m.k
0.2 W/m.k
0.22 W/m.k
Chemical parameter



SiO2
43-46 %
43-46 %
45-48 %
Al2O3
10-13 %
10-13 %
13-16 %
Fe2O3
4-6 %
4-6 %
4-6 %
TiO
1-2 %
1-2 %
1-2 %
MgO
16-23 %
16-23 %
14-20 %
K2O
7-10 %
7-10 %
5-8 %
Na2O
1-2 %
1-2 %
1-2 %
LOI @ 1000 C
4-6 %
4-6 %
3-5 %
Standard size & Thickness



1005*615 mm
10-60 mm thickness
10-60 mm thickness
10-60 mm thickness
1225*615 mm
10-60 mm thickness
10-60 mm thickness
10-60 mm thickness
Data are average results of tests conducted under standard precedures and are subject to variation.
Production Process
OEM Gas Boiler Fire Brick Blocks For Stove Vermiculite Material 6

Pressing

High pressure mould pressing to form the shapes required
OEM Gas Boiler Fire Brick Blocks For Stove Vermiculite Material 7

Drying

Drying for release the water contained and form the stable applying
OEM Gas Boiler Fire Brick Blocks For Stove Vermiculite Material 8

Quality checking

For each unit we have one by one checking to ensure the end using.
Product Packaging
OEM Gas Boiler Fire Brick Blocks For Stove Vermiculite Material 9
OEM Gas Boiler Fire Brick Blocks For Stove Vermiculite Material 10
OEM Gas Boiler Fire Brick Blocks For Stove Vermiculite Material 11
Certifications
OEM Gas Boiler Fire Brick Blocks For Stove Vermiculite Material 12
OEM Gas Boiler Fire Brick Blocks For Stove Vermiculite Material 13
OEM Gas Boiler Fire Brick Blocks For Stove Vermiculite Material 14
OEM Gas Boiler Fire Brick Blocks For Stove Vermiculite Material 15
Company Profile
OEM Gas Boiler Fire Brick Blocks For Stove Vermiculite Material 16
Shenzhen Bluewind Vermiculite Product Co., Ltd.
Is a manufacture company specialized in vermiculite fireproof and insulation products, offer OEM and ODM service for customers. Our products are widely applied in wood stoves and fireplaces(Baffle boards), condensing gas boiler(Insulation block), industrial kilns and furnace(Insulation layer), aluminum electrolytic cells(Anti-seepage layer and Insulation Layer), steel ladle(Insulation Layer) etc.,

With 2 automatic producing lines and 2 irregular blocks producing lines, our monthly producing capacity is around 800 mts. The main density we offer 450kgs/m³ for insulation, 600-800 kgs/m³ for baffle, and 900-1000 for fireproof cladding, and over 1000 for the refractory and insulation applying.

With unique technology and producing skills, our vermiculite products have better strength and longer service life which can offer better performance in the industrial applying, ensure a lower energy consumption and lower carbon releasing.
FAQ
Q1 : Are you a manufacture or trader?
A: We are a manufacturer based trading company, we not only can provide the high quality products with the
best price, but also can offer the total solution for your project requirement.

Q2: How can you control your quality?
A : For each production processing, Bluewind have complete QC system for the quality controlling and overall quality checking after production, and before packing and shipment, we have another quality checking to ensure every piece of the boards are to be delivered in good quality.

Q3 : Do you provide free samples?
A : We hope every sample valued, especially which requires machining tooling.

Q4 : What is your lead time?
A : It usually needs about 20- 35 days after receiving the PO.

Q5 : Can we visit your company?
A : Yes, for sure, you are welcome to visit our company and our products.

Q6 : What is the warranty of your products?
A : Our products have at least 1 year warranty, if any quality problems not caused by personal or accident,
we will take responsibility of the cost of the shipment and the replacement.

Q7: What's the MOQ of trial order?
A : we recommend the MOQ at least a full pallet so that the costs more efficient.

Q8: Why choose us?
A: We had been in the line for more than 15 years, insist in the quality first and good after-sales service. Bring the customers few troubles and satisfying on the applying.
