Practical Stove Furnace Insulation Panels For Condensing Gas Boiler

100 sets
MOQ
$5.00 - $20.00/sets
Price
Practical Stove Furnace Insulation Panels For Condensing Gas Boiler
Features Gallery Product Description Request A Quote
Features
Specifications
Shape: Block
Material: Vermiculite
SiO2 Content (%): 50%
Al2O3 Content (%): 13%
MgO Content (%): 14%
CaO Content (%): 2%
Refractoriness (Degree): Common (1580°< Refractoriness< 1770°)
CrO Content (%): 0
SiC Content (%): 0
Processing Service: Punching, Cutting, Moulding
Product Name: Vermiculite Board
Raw Material: Exfoliated Vermiculite
Size: Customized Size
BULK DENSITY: 0.9-1.0 G/cm³
Application: Condensing Gas Boiler
Working Temperature: 1200 Degree
Cold Crush Strength: 2.0~3.0
Thermal Conductivity(w/mk): 0.15~0.3 W/m.K
Feature: Thermal Shock Resistance
Color: Sand
Port: Shenzhen
High Light:

Practical Furnace Insulation Panels

,

Stove Furnace Insulation Panels

,

Gas Boiler Stove Insulation Board

Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: Bluewind
Model Number: BWV-1100
Payment & Shipping Terms
Packaging Details: Carton packing or customized
Delivery Time: 15workdays
Supply Ability: 100000 Set/Sets per Month
Product Description

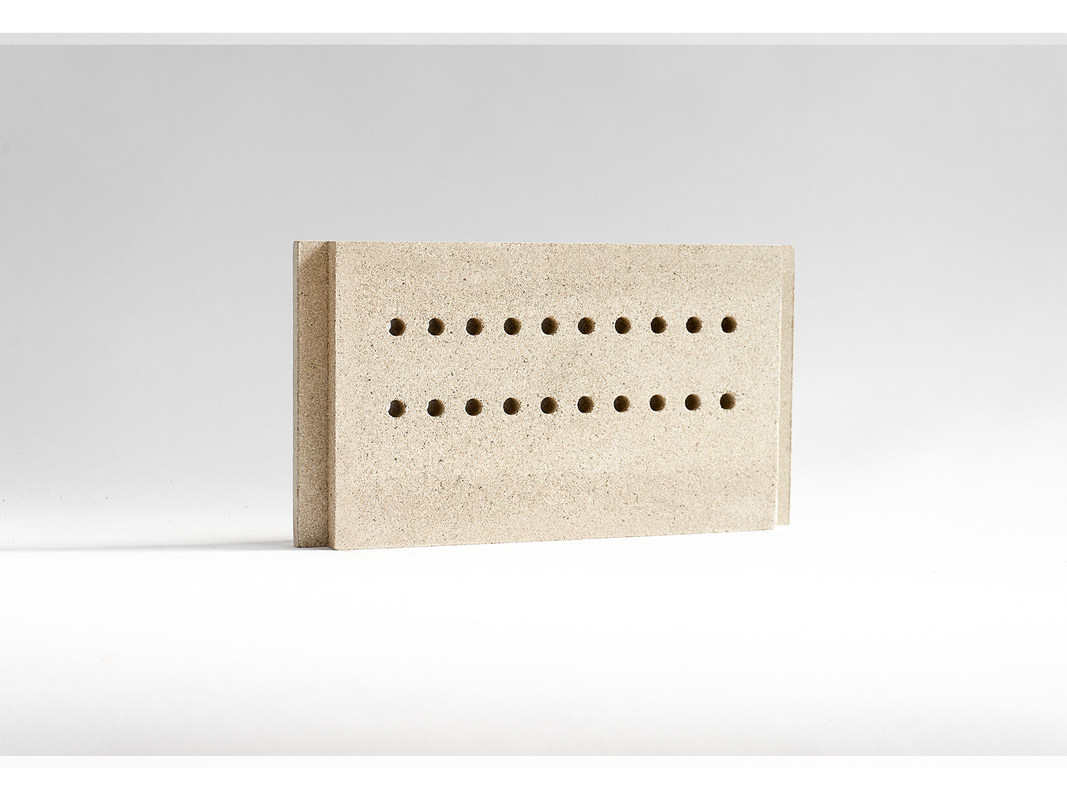

Customized vermiculite refractory insulation moulded parts for condensing gas boiler heat cells insulation



Condensing gas boilers

Condensing gas boiler is a new technology products which increased the energy using efficient, and reducing the exhaust gas emission. It is designed to serve for around 15 years, which is a logically energy efficient reducing, environmental friendly and economic products.
The core of the condensing gas boiler is the heat exchange part due to the poor working environment, fast firing and cooling. The refractory and insulation material can not last the designed service life, commonly only works 1-2 years that will damaged inside, which lead the heat exchange unit can not working normally in long years, and requires replacement.

Bluewind vermiculite refractory and insulation blocks, apply natural expanded vermiculite, and inorgainc adhesive, made the 1,200 Celsius degree resistant blocks. With thermal conductivity below 0.28 W/m.K at 800 Celsius, and can continuous working for over 30 days in lab testing, no breaking nor shape changing. In expecting serving for 10+ years.
Practical Stove Furnace Insulation Panels For Condensing Gas Boiler 0
Practical Stove Furnace Insulation Panels For Condensing Gas Boiler 1
Practical Stove Furnace Insulation Panels For Condensing Gas Boiler 2
Practical Stove Furnace Insulation Panels For Condensing Gas Boiler 3
Practical Stove Furnace Insulation Panels For Condensing Gas Boiler 4
Practical Stove Furnace Insulation Panels For Condensing Gas Boiler 5
Practical Stove Furnace Insulation Panels For Condensing Gas Boiler 6
Production Process
Practical Stove Furnace Insulation Panels For Condensing Gas Boiler 7

Pressing

High pressure mould pressing to form the shapes required
Practical Stove Furnace Insulation Panels For Condensing Gas Boiler 8

Drying

Drying for release the water contained and form the stable applying
Practical Stove Furnace Insulation Panels For Condensing Gas Boiler 9

Quality checking

For each unit we have one by one checking to ensure the end using.
Product Packaging
Practical Stove Furnace Insulation Panels For Condensing Gas Boiler 10
Practical Stove Furnace Insulation Panels For Condensing Gas Boiler 11
Practical Stove Furnace Insulation Panels For Condensing Gas Boiler 11
Practical Stove Furnace Insulation Panels For Condensing Gas Boiler 13
FAQ
1> What the material of the refractory and insulation product
More than 50% of the vermiculite refractory and insulation material
is made of expanded silver vermiculite, which is from Xinjiang Province, and free of asbestos, with high quality in expansion
times and stable thermal insulation performance.

2> What the features of the vermiculite refractory and insulation material?
Fire resistant temperature =/<1200 Celsius degree
Thermal conductivity <0.28 W/m.K
Cold pressing strength >6 Mpa
Density around 0.9 g/cm³
Service life estimated to 10 years in the gas boilers
Above data from lab testing of professional wall mounted gas boilers.

3> What the MOQ and lead time?
Due to it commonly requires molds producing, the MOQ we recommend is 1,000 sets; and the lead time is about 15-25 days for the producing and packing, and extra 30 days for the molds producing and adjustment.

4> Where else you are applying?
We applying in condensing gas boilers, fireplace and stoves, industrial kilns and metallurgy industries like aluminum electrolytic melting and steel ladle lining etc.

5> How to contact Bluewind?
You can leave message to us at Alibaba platform, and also following methods valid:
Mobile: +86 182 1817 7568
Email: sales01(@)bluewindvp.com

Company Profile
Practical Stove Furnace Insulation Panels For Condensing Gas Boiler 14

Shenzhen Bluwind Vermiculite Product Co., Ltd., is a manufacturing company strive in vermiculite refractory and insulation products producing and supplying.

We offer 1,200 Celsius degree fire resistant anti-seepage vermiculite bricks for Aluminum Electrolytic Cells, as well as Lightweight Insulation Vermiculite Bricks in the insulation Layers, Refractory and insulation material for 10+ years designed wall mounted condensing gas boilers and long service life industrial boilers, Tundish and steel ladle use refractory and insulation layer vermiculite panels, Wood stove and fireplaces use fireproof and heat insulation baffle boards, 120+ mins 240+ mins fire rated light weight vermiculite door core, Decorative fireproof wall cladding, ventilation duct fire resist light weight panels etc.

Bluewind strive in produce and supply high quality vermiculite refractory and insulation products, the diagonal change is within 2 mm in 1000 mm length, while 95% of vermiculite products at least 10 mm. For unique requirement, we supply panels with patterns like reed, hexagon, brick, diamond etc shapes, and molded parts as well as machining parts for customers requirements. Satisfy different requirement of users, if you have any request on the vermiculite panels, please feel free to contact us for your high requirement on the refractory and insulation material applying.

Bluewind will be your reliable and loyal partner in the cooperation!
Description of Vermiculite Board
Practical Stove Furnace Insulation Panels For Condensing Gas Boiler 15
Features
Refractory grade: Up to 1200 C fire/heat resistant
High thermal shock resistant, can be used on fire side;
Non combustible
Thermal/ Heat insulation: Low thermal conductivity <0.3 W /m.K @ 1,000 Celsius degree
Density range: 0.4-1.2 g/cm³

Chemical resistant;
High mechanical strengths;
Easy for secondary tooling and machining
Environmental friendly
Practical Stove Furnace Insulation Panels For Condensing Gas Boiler 16

Blue Wind Vermiculite refractory and insulation boards apply 0.3-1 mm expanded silver vermiculite as the raw material, with inorganic adhesive and cold pressing technology combined, after hours drying that made the good strength fireproof insulation boards.
For serving under severe conditions, vermiculite boards have excellent mechanical strength, good resistance to thermal spalling, and are highly resistant to chemical attack by vilatile alkaies and some slag.
Practical Stove Furnace Insulation Panels For Condensing Gas Boiler 17
Stoves applying
For stoves application, it requires lightweight and good fireproofing requirement, as well as thermal shock resistance. The vermiculite boards owns the all benefits and plays an important role in the stoves applying especially in wood stoves and pellet stoves. And our durable vermiculite boards with longer working life can resistant the bending and crushing which caused by long time uneven heating, bring the stoves longer service life and less trouble for the replacement.
Practical Stove Furnace Insulation Panels For Condensing Gas Boiler 18

Heat cell

Heat cell is the heart part of the condensing boiler, it determines the service life of the condensing boiler.
Vermiculite boards with 1200 C can resistant the extremely environment which fast drying and water soaking; has better performance than the traditional ceramic fiber boards.
Practical Stove Furnace Insulation Panels For Condensing Gas Boiler 19

Condensing boiler

Condensing boilers ideal service life is about 12-15 years, while the heart part heat cells determines whether it can or can not to reach the ideal life. With high quality vermiculite boards, it can reduce the times of heat cells replacement and bring the user less troubles.
Practical Stove Furnace Insulation Panels For Condensing Gas Boiler 20
Aluminum Electrolytic Cells
The V-1100 and V-1200 are recommended for the applying of Aluminum electrolytic cells. Their high strength and low thermal conductivity make them ideally for the applying of the industry. Various combinations of bulk density, insulation properties and compressive strength, commonly V-1100(500), V-1100(1000), and V-1200 are chosen for the excellent performance in strength and thermal insulation performance.
And the another important feature in the Aluminum Electrolytic cells is that the V-1100 and V-1200 series do not corrosion by the molten aluminum and are resistant to cryolite penetration and fluorides. It helps to maintain the cells service life and keep the better running of the aluminum electrolytic processing.
Product Paramenters
Physical parameter



Density (kgs/m3)
700
800
900
Max temp.
1150 ℃
1150 ℃
1150 ℃
Strength
4.5/2.0 MPa
5.5/2.1 MPa
6.2/2.2 MPa
Linear shrinkage
1%
1%
1%
Thermal conduct.



 @ 200 ℃
0.14 W/m.k
0.16 W/m.k
0.18 W/m.k
 @ 400 ℃
0.16W/m.k
0.18 W/m.k
0.2 W/m.k
 @ 600 ℃
0.18 W/m.k
0.2 W/m.k
0.22 W/m.k
Chemical parameter



SiO2
43-46 %
43-46 %
45-48 %
Al2O3
10-13 %
10-13 %
13-16 %
Fe2O3
4-6 %
4-6 %
4-6 %
TiO
1-2 %
1-2 %
1-2 %
MgO
16-23 %
16-23 %
14-20 %
K2O
7-10 %
7-10 %
5-8 %
Na2O
1-2 %
1-2 %
1-2 %
LOI @ 1000 C
4-6 %
4-6 %
3-5 %
Standard size & Thickness



1000*610mm
10-60 mm thickness
10-60 mm thickness
10-60 mm thickness
1200*1000 mm
10-60 mm thickness
10-60 mm thickness
10-60 mm thickness
Data are average results of tests conducted under standard precedures and are subject to variation.
